How to set condition and workflow as input

Import Example

Condition as input

Set workflow as input

Make a loop running an array of conditions

Import the example

Get_started_with_plotting_1.stask

The example is available at

Examples → SIMA 4.0

Click on the initial condition

Click on Simple_Flexible_Riser.initial

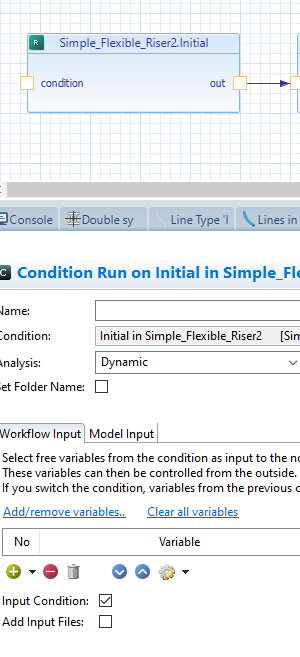

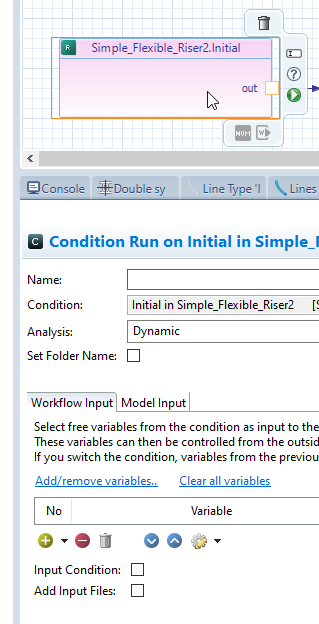

Click on the Input condition checkbox.

The input slot condition is added

NB! SIMA will add a counter on the name if an task with the same name is already present in the workspace, i.e. Simple_Flexible_Riser2.initial in the picture to the right.

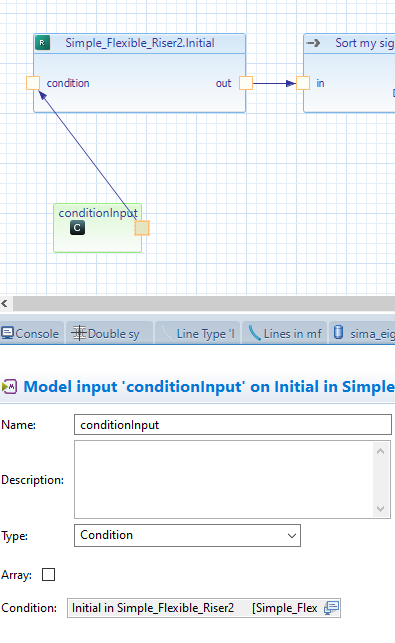

Add the model input from the Palette

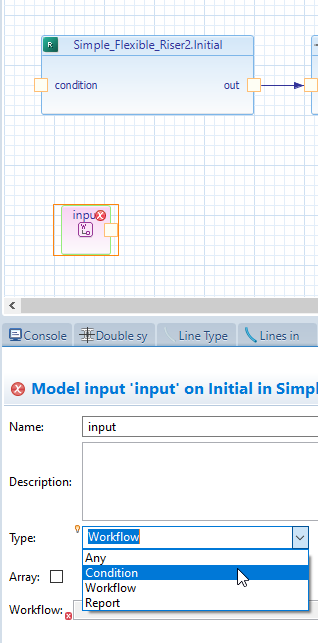

Select condition as Type

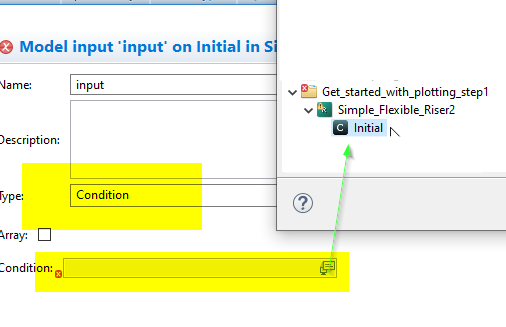

Select the Initial condition

Rename the box to a user-friendly name and connect the model input to the input slot

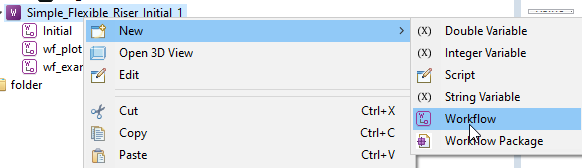

Make a new workflow

Move the post processing part in the workflow Initial to wf_plot

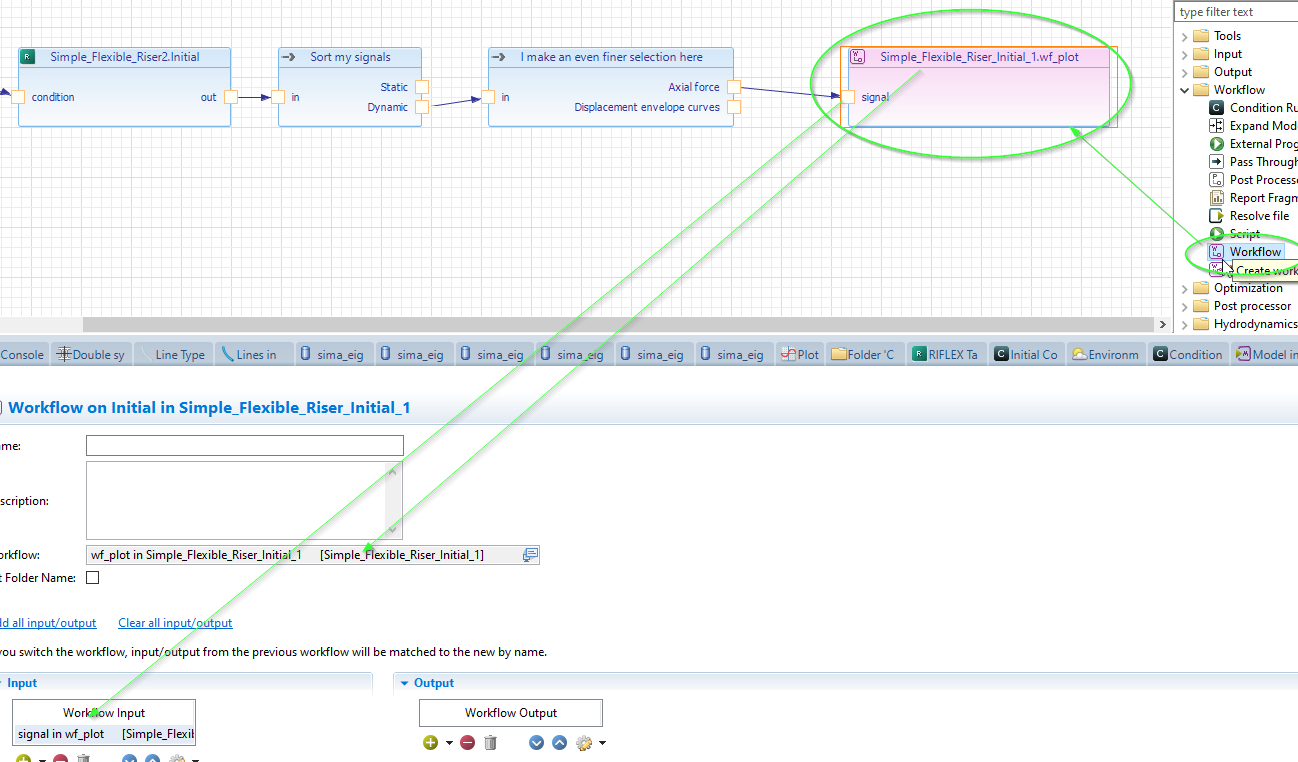

Replace the post processor part with a workflow,page 9

Link the workflow to wf_plot, figure page 9

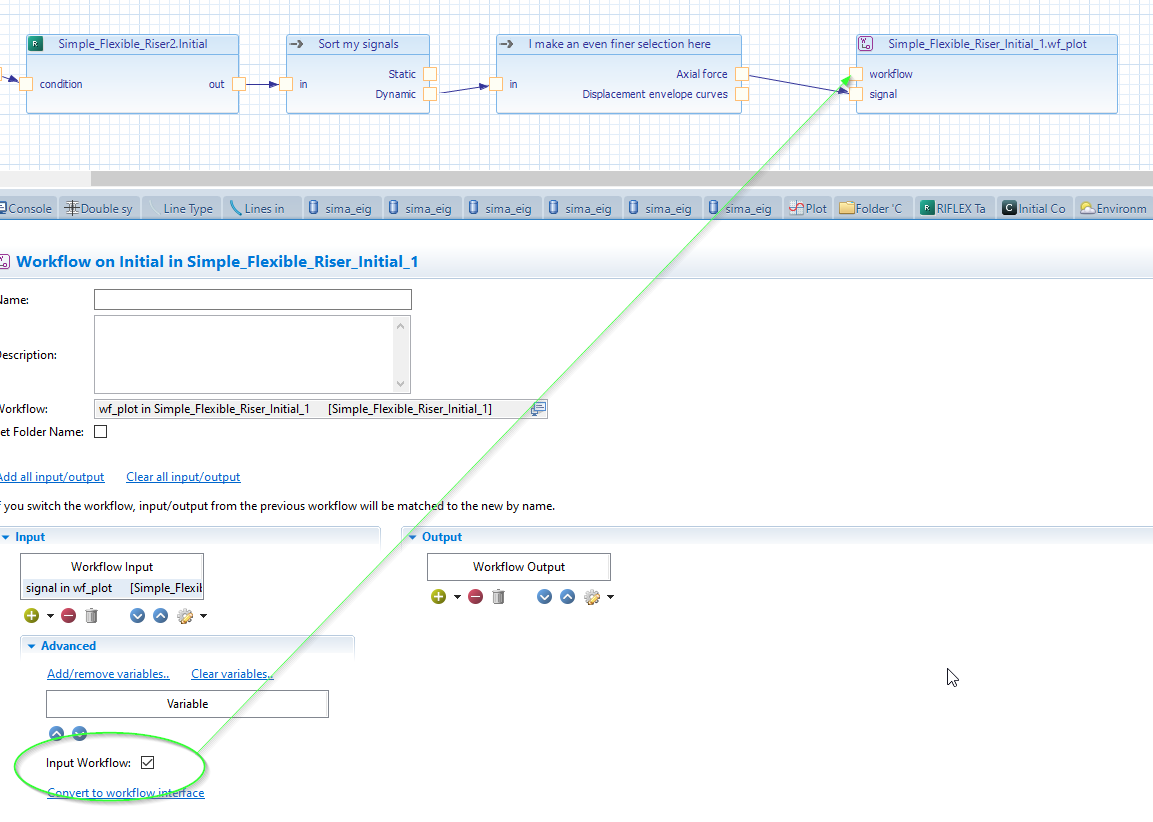

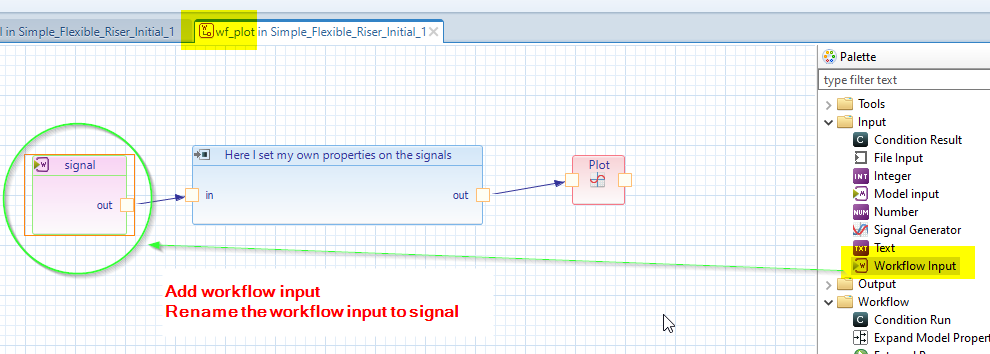

Checkoff Input as workflow, figure page 10

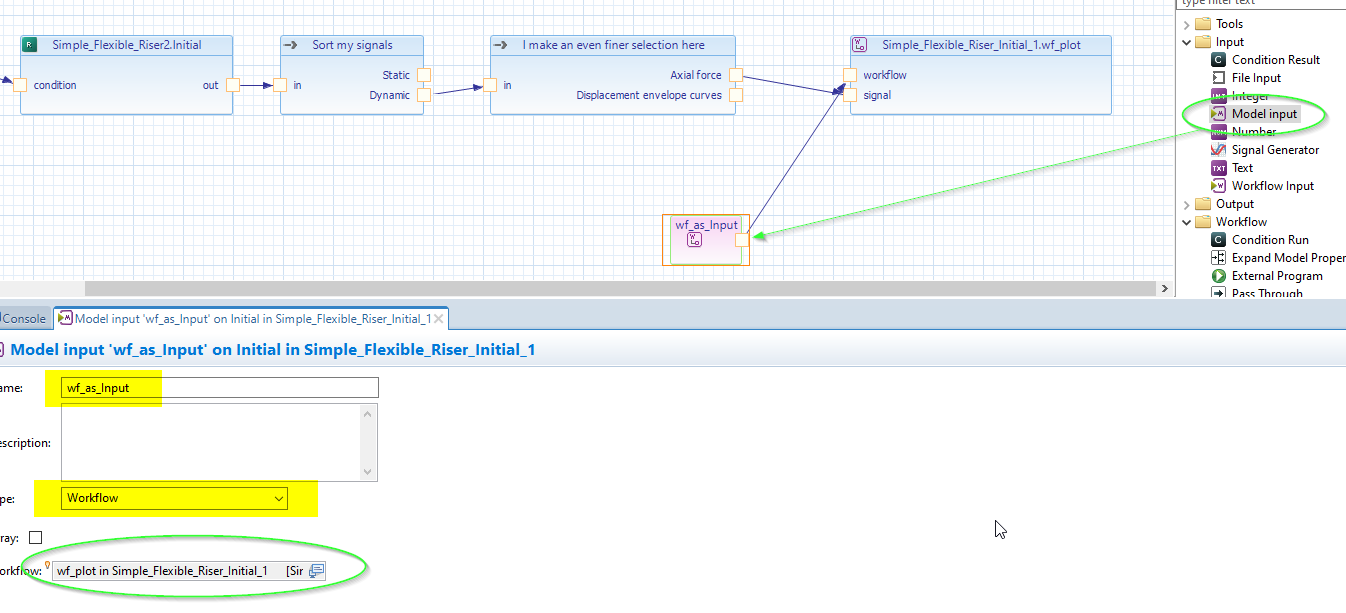

Add model Input, page 11

Rename to wf_as_input (or something you prefer), page 11

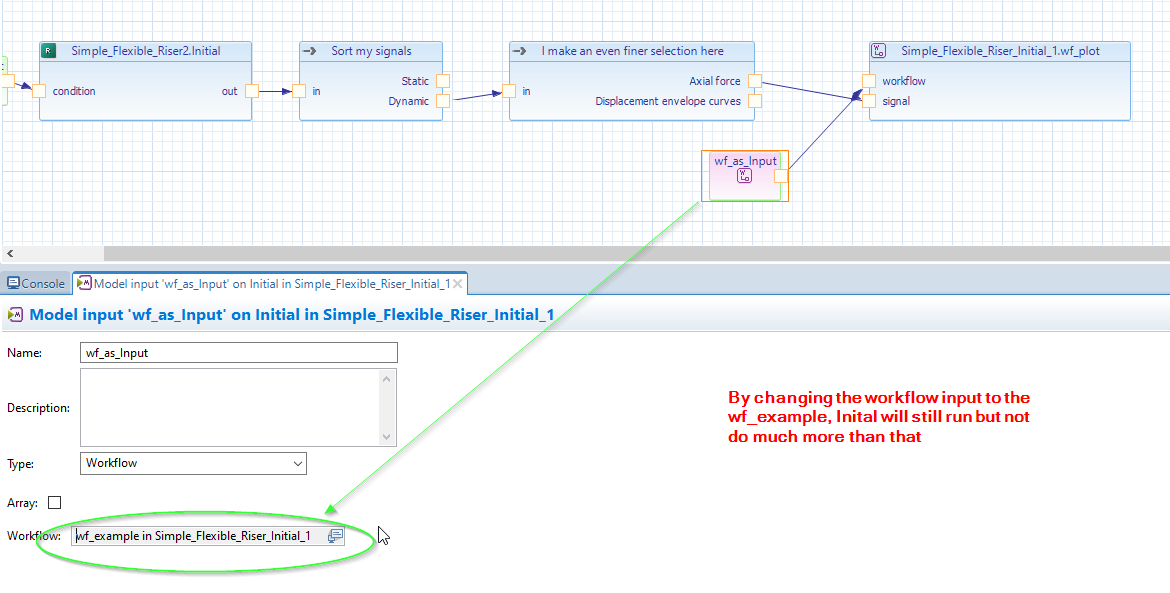

Connect the model input output slot to the slot called workflow page 11

The workflows used as input must have identical input and output

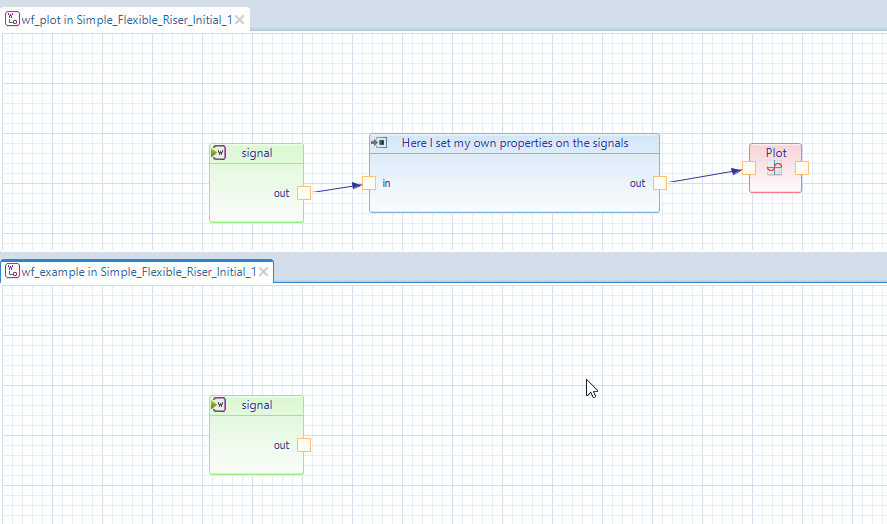

Wf_plot

Wf_example

The example to the right have one identical input (signal) and no outs

The upper make a plot, the lower one does nothing

Note: The approach is similar if you want to run a set of workflow as input

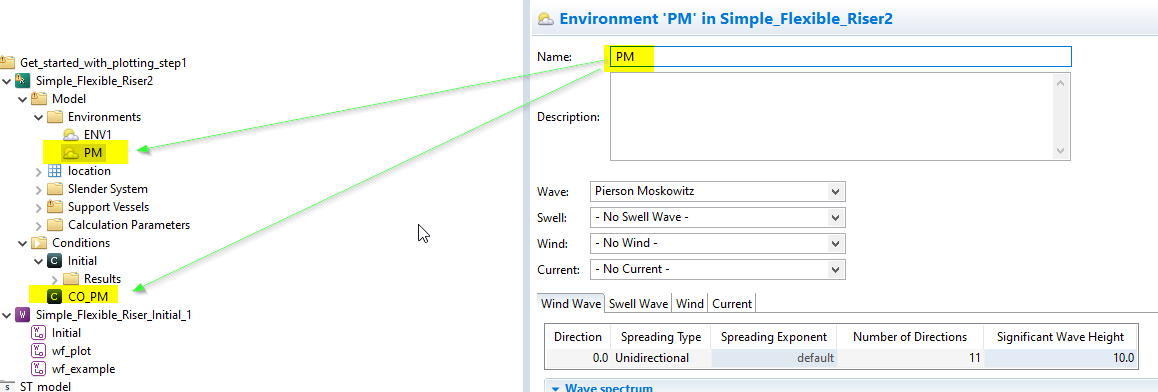

Make a new environment in the Riflex task (Pierson Moskowitz, PM), page 15

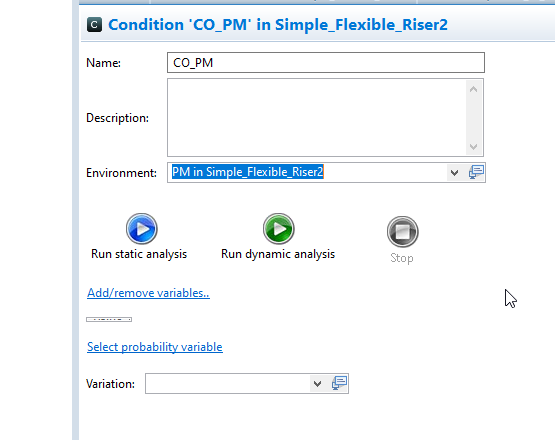

Make a condition using the new environment, page 15

Make a new workflow

Give a new name (example: run_a_set_of_conditions)

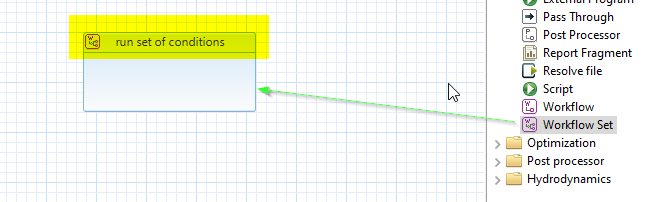

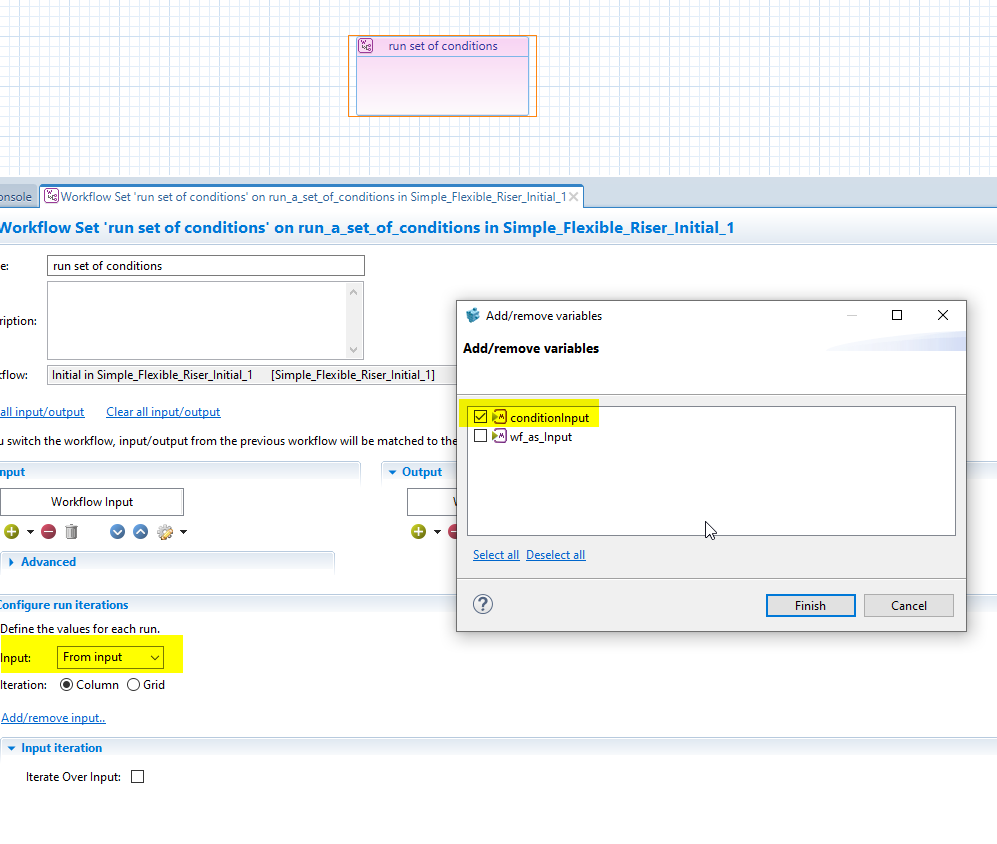

Add a workflow set from the palette to the workflow run_a_set_of_conditions

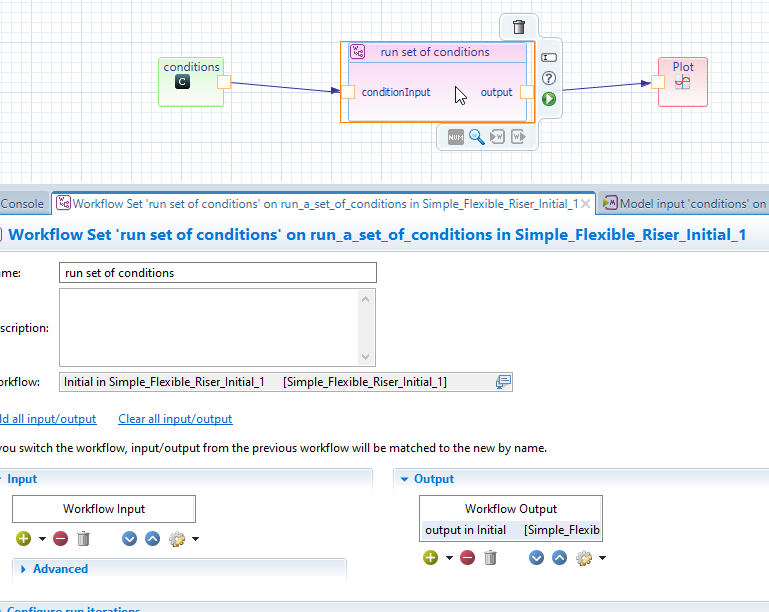

Give the workflow set a name (example: run a set of conditions)

Choose Input: From input

Select condition Input

A slot input is created on the workflow

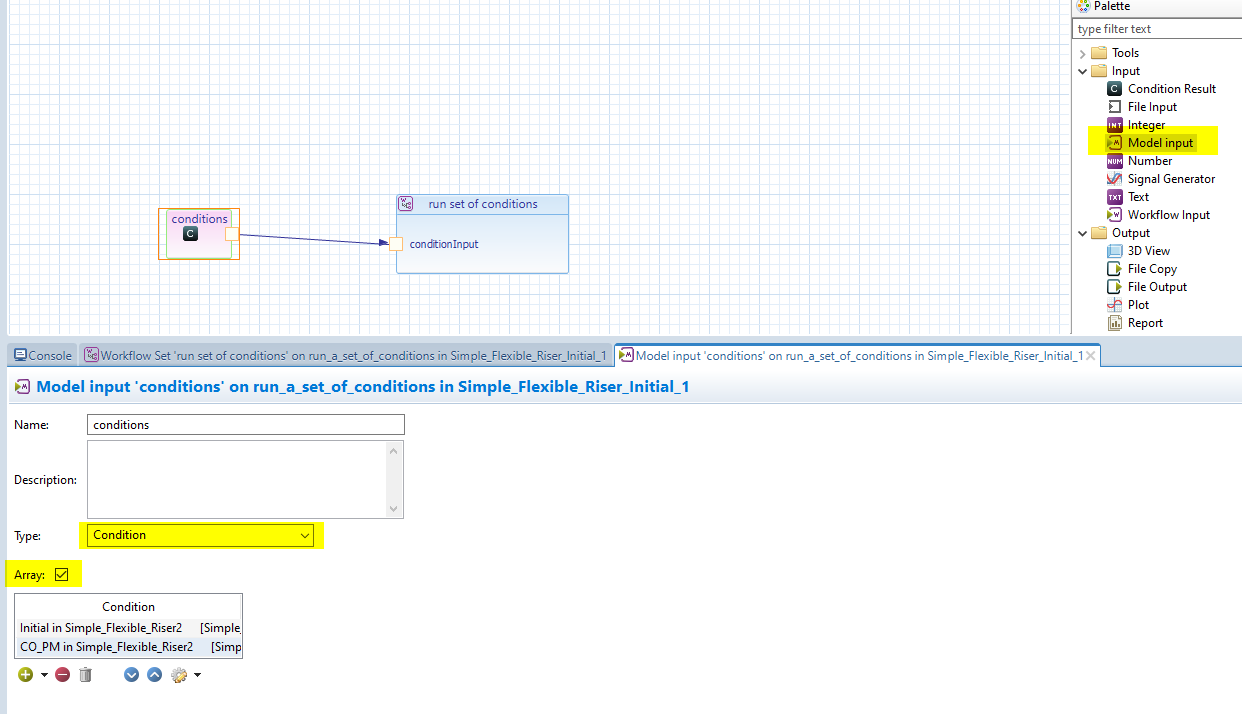

Add model input from the palette, rename to conditions

Check off array

Choose type condition

Add conditions; here

Initial

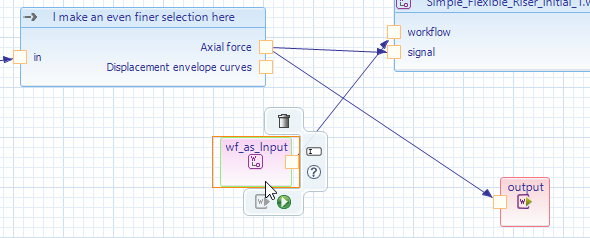

To compare the results add a workflow output in the Initial workflow

Add the output to the workflow calling Initial

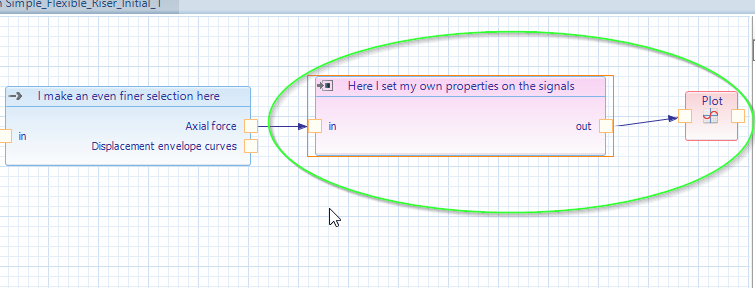

Add a plot box to look at he the signals
